Description

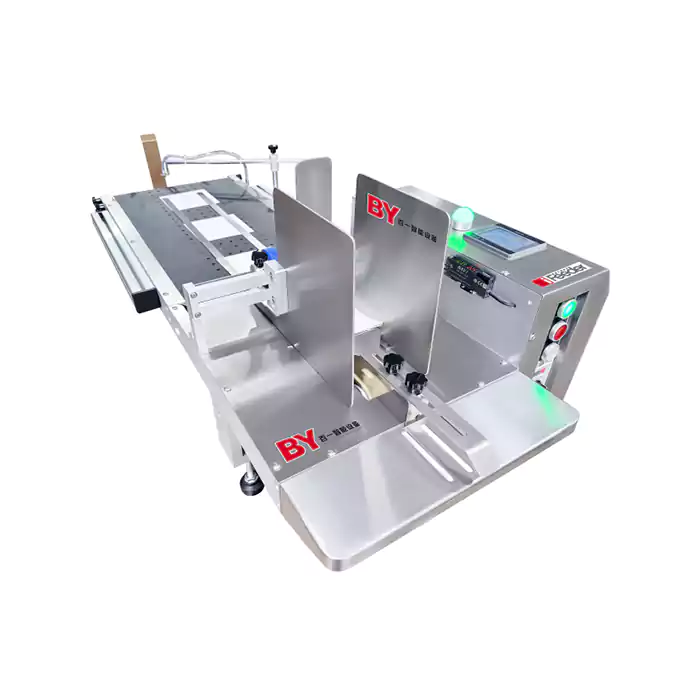

Set the desired quantity on the touchscreen (HMI), and the feeder will automatically dispense that number of items. Operating modes include automatic dispensing (dispense-pause-dispense) and single-dispense-stop. The advanced HMI interface features a simple, intuitive design with clear operational logic; a range of functions, including parameter settings and operational controls, can be performed through simple touchscreen controls. This feeder can easily handle a variety of materials, including instruction manuals, labels, paper bags, plastic bags, and envelopes. Friction-based dispensing technology ensures that materials do not stick together or become damaged during high-speed conveyance, thereby guaranteeing the quality and continuity of material processing.
Equipment parameters:
1. Shape size: length X width X height = 1302 X 637 X 450mm
2. Weight: 30KG
3. Power: 220VAC
4. Power: About 400W
5. Product size range: length * width * thickness = 60-280 * 26-280*0.08-5mm
6. Speed control (control) mode: frequency conversion or brushless DC Speed Regulation
7. Motor: frequency conversion or brushless DC motor
8. Adapt to product types or specifications: all kinds of paper, plastic bags, cards, labels, etc.
9. Body materials: stainless steel
10. Built-in counting function.
11. 2.8-inch touchscreen
